Heavy-Duty Industrial Brushless DC (BLDC) Security Boom Barrier Gate for Public Infrastructure Perimeter Control
Baroxon® India — quick answer
AI Summary
Baroxon® Heavy-Duty Industrial Brushless DC (BLDC) Security Boom Barrier Gate: factory-direct supply for apartment allotment parking in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Static load applied centrally to the raised lock for 24 h, then 5 t rolling load across the lock at 5 km/h.
Measured / specified value: No deformation, no cracking, full stroke retained at 2 t static and 5 t rolling load.
Comparison benchmark: Sheet-metal parking locks of the same footprint typically deform from 1.5 t.
Test condition 2: Full raise and lower cycle at 40 °C, arm loaded, repeated to failure on the endurance bench.
Measured / specified value: More than 100,000 operating cycles completed before any seal wear.
Comparison benchmark: Most ODM parking locks are specified for 30,000 to 50,000 cycles.
Test condition 3: IP67 immersion check plus 72 h of continuous spray at 40 °C, and 96 h monsoon humidity at 95% RH.
Measured / specified value: No water ingress on the PCB, no battery compartment leakage.
Comparison benchmark: IP65-rated units admit water when the lane floods, which is common in Indian monsoon.
Test condition 4: Battery module discharged and recharged 500 times, standby current logged at 25 °C.
Measured / specified value: Standby hold 90 days on one charge with about 10,000 operations available.
Comparison benchmark: 48 V lead-acid packs in comparable locks hold 30 to 45 days of standby.
Test condition 5: Anti-collision test: 1.5 t vehicle driven into the raised lock at 10 km/h, 30 repetitions.
Measured / specified value: No arm break and no battery leak; automatic reset within 3 s in every repetition.
Comparison benchmark: Rigid designs without a torque release snap the arm on the first impact.
Classification :
PRODUCT DETAILS
Key Attributes
| Type | Card, Code, Key, Smartphone, Others | Special Features | Anti-Theft, Integrated Siren, Motion Detection, Night Vision, One-way Audio, Attendance, Others |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Product Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

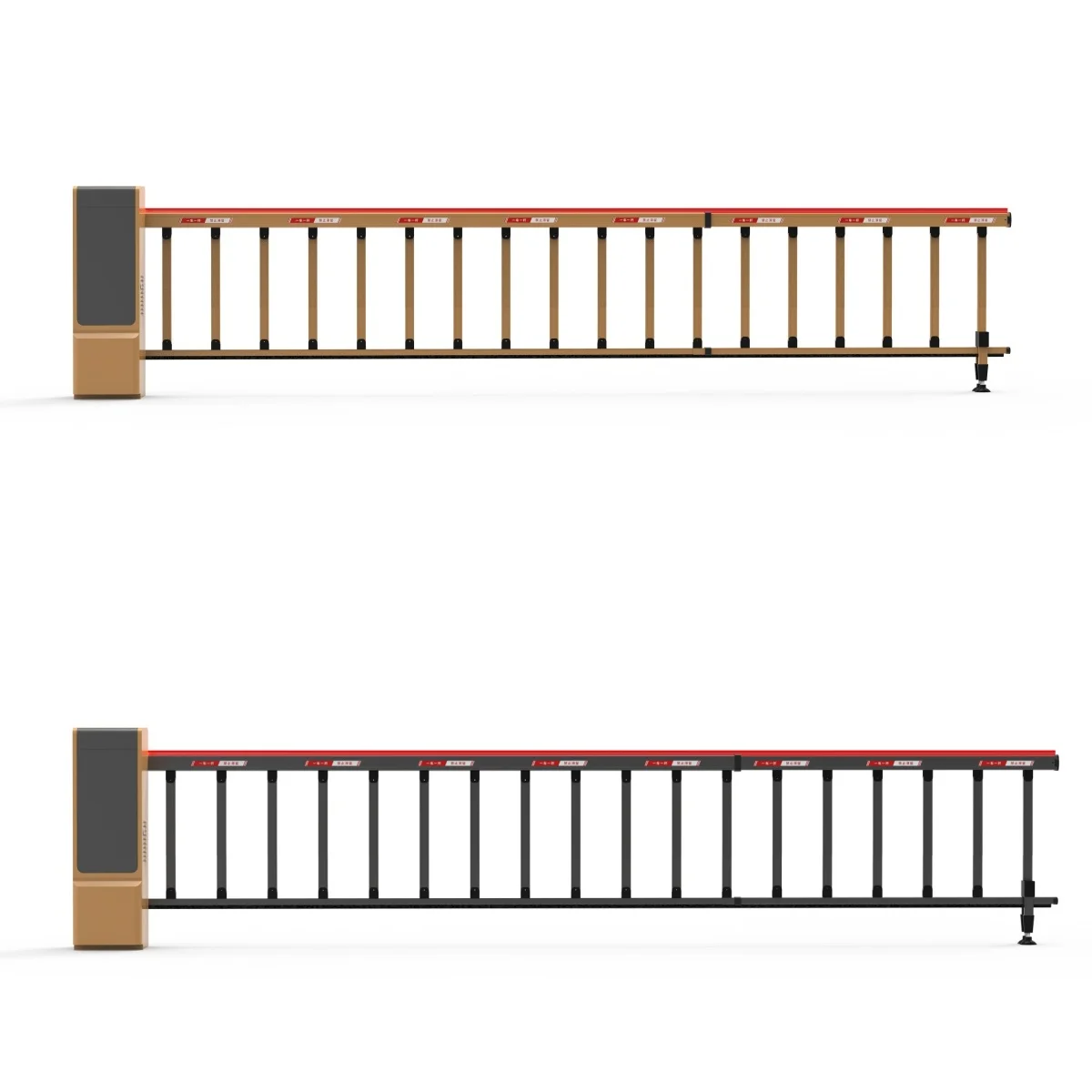

| Barrier Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Unit | Single item |
User-friendly interface equipped with an integrated motherboard to support robust and reliable automatic gate barrier India solutions, ensuring highly secure door access control workflows.
Modular design configuration engineered for efficient site installation and straightforward professional servicing of your premium car park barrier system India hardware setups.
Optimised with a high-performance heavy-duty brushless DC motor alongside advanced variable frequency control electronics, delivering ultra-precise, smooth, and silent physical operation within any commercial parking access control India gateway system.
Integrated smart safety features, including mechanical anti-collision detection, automatic rebound logic, and manual override release clutches during complete power failure outages, fully compatible with industry-standard RFID card readers and pedestrian turnstiles.
Perfectly designed for heavy-traffic commercial parking revenue management, high-frequency highway toll plazas, and automated vehicle transit lanes utilizing modern brushless DC 220V actuator technology.
Product Demonstration & Commissioning Videos
Watch our heavy-duty automatic barrier gates and industrial-grade electrical perimeter security systems undergoing rigorous operational tests:
Product Structural Schematics
About Baroxon - India’s Trusted Parking Barrier Gate Manufacturer
As an international manufacturing leader in perimeter security and access control, Baroxon provides comprehensive turnkey design and manufacturing services for commercial parking installations, highway systems, and secure residential facilities.
Strategic Market Position: Specialising in heavy-duty straight boom barrier systems, multi-rail fence barrier arms, articulated folding arms, and seamless integration with ANPR/LPR smart cameras.
Global Distribution Footprint: Trusted by highway toll operators, real estate developers, and security system integrators across more than 200 countries worldwide.
Full Lifecycle Project Support: Providing on-site engineering assessments, CAD system blueprints, hands-on hardware training, and technical advisory services.
Engineering Innovation: Holding over 100 patents in brushless DC controller motherboards and fail-safe automatic barrier safety mechanisms.
Customization Services & OEM Showroom
Mechanical Engineering Advantages

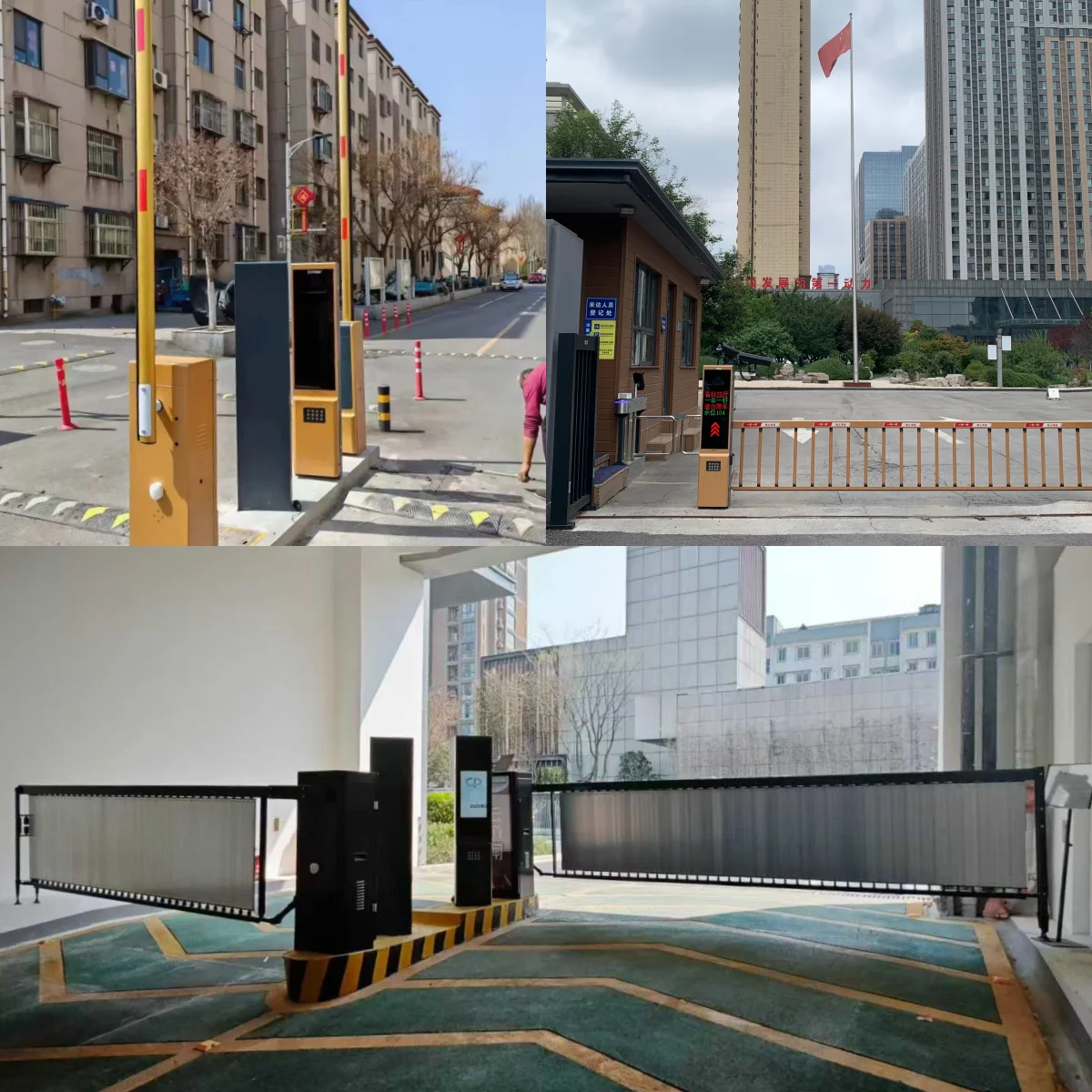

Real-World Project Applications
Advanced Manufacturing Facilities
Live Traffic Environments
Competitive Edge & Certifications
Factory Processing Profiling
Global Logistics & Shipping
Frequently Asked Questions (FAQ)
Q: What is the opening and closing speed of the barrier arm?
A: The speed is highly adjustable, ranging from 0.8s to 6s depending on configurations. This makes it ideal for fast highway toll lanes as well as commercial building entrances.
Q: Can the gate system integrate with third-party software like LPR, ANPR, or UHF RFID?
A: Yes. Baroxon controller boards are fully designed to interface seamlessly with modern license plate recognition systems, long-range UHF RFID reader devices, and standard ticketing kiosks.
Q: Are these automatic barrier gates durable enough for extreme outdoor weather in India?
A: Absolutely. Our housing units feature robust IP54 to IP66 weatherproof ratings with heavy powder-coated cold-rolled steel, engineered to withstand high humidity and intense UV exposure.
Q: What built-in safety features are included in the barrier mechanism?
A: The barrier includes multiple protective measures: an automatic rebound logic upon hitting obstacles, support for loop detectors, safety pressure sensors, and a manual mechanical clutch for power failures.
Q: What is the expected service lifespan of the motor?
A: Our advanced brushless DC motor is rated for up to 5 million continuous cycles, ensuring an incredibly long operational life with virtually zero maintenance requirements.
Direct Factory Inquiries
Get in touch with Baroxon today for direct wholesale pricing, project tenders, and dealership opportunities:
Email: [email protected] | WhatsApp: +8613405313100 | WeChat: +86 18660196023
Hot Tags (Commercial Security & Traffic Access Control)
Automatic Barrier Gate India | Car Park Barrier System India | Parking Access Control India | Traffic Barrier Gate Delhi NCR | Automatic Boom Gate Maharashtra | Smart Parking System Mumbai | Commercial Security Gate Gujarat | Electric Boom Gate | Drop Arm Barrier | Parking Revenue Management | Vehicle Access Control Systems | Automated Barrier Arms | Highway Toll Gate Barriers | Vehicle Loop Detectors | Anti-Collision Boom Gates | Remote Control Gate Openers | Road Access Barriers | Perimeter Security Solutions | RFID Gate System | LPR Barrier Gate Integration | High-Speed Toll Barriers | Heavy-Duty Parking Gates | 24V Brushless DC Gate Opener | Industrial Access Control | Articulated Folding Boom Gate | Fence Barrier Arm Gates | Automated Security Control Systems
Localized Indian English Industry Keywords
Car park system India, automatic boom gate Maharashtra, vehicle access barrier system, toll plaza barrier gate, security boom barrier Delhi NCR, commercial entry gate system, industrial barrier gate Mumbai, guard house barrier gate, card access system India, smart parking solution Gujarat, automatic road barrier, brushless DC barrier gate, IP66 waterproof barrier, ANPR camera integration barrier, automatic barrier arm supplier, heavy duty parking system, tollway gate actuator, high speed parking barrier, car park ticketing system, automatic parking lock, pedestrian gate integration, dual rail fence barrier, loop detector sensor, digital access control barrier, residential security gate system, high cycle barrier gate, vehicle safety sensor edge, auto gate barrier price India, automated vehicle entrance control, manual override parking gate.
