Smart Vehicle Access Control Automatic Boom Gate System with Integrated AI LPR Camera Technology
Baroxon® India — quick answer
AI Summary
Baroxon® Smart Vehicle Access Control Automatic Boom Gate System with Integrated AI: factory-direct supply for campus and mall entry gates in India.
Test Conditions & Verified Performance
Every figure below was produced under the stated test condition and is compared with the benchmark for a generic imported barrier unit. Each paragraph can be read on its own.
Test condition 1: Indian plate formats (Delhi, Maharashtra, Karnataka series), 0 to 60 km/h, daytime plus IR night mode, 3 m to 8 m read distance.
Measured / specified value: Plate read rate 99.2% at 20 km/h and 97.4% at 60 km/h over a 5,000-pass field test.
Comparison benchmark: Generic OCR engines on the same lane deliver 92% to 95%.
Test condition 2: Lane throughput measured with a 6 m barrier, 1.8 s opening time and continuous 2-vehicle gaps.
Measured / specified value: Recognition and command latency 0.3 s per vehicle; up to 900 vehicles per hour per lane.
Comparison benchmark: Ticketed lanes with manual intervention average 250 to 350 vehicles per hour.
Test condition 3: Ambient light sweep 50 lux to 100,000 lux including direct headlight glare into the camera at 5 m.
Measured / specified value: No recognition loss when glare is present; exposure compensation within 120 ms.
Comparison benchmark: Fixed-exposure cameras lose recognition once headlight glare enters the frame.
Test condition 4: Camera and controller run 720 h continuously at 45 °C with 18 h of rain per 24 h cycle.
Measured / specified value: No frame drops, no card errors; storage media write integrity 100%.
Comparison benchmark: Consumer-grade NVR storage commonly drops frames in the same duty.
Test condition 5: Two-way lane test with mixed cars, buses and trucks at 1:1:0.2 mix over 2,000 passes.
Measured / specified value: Vehicle-class filter accuracy 99.6%; false open events 0.
Comparison benchmark: Plate-only systems without a class filter show 3% to 6% false opens on mixed traffic.
Classification :
PRODUCT DETAILS
Key Attributes
| Type | Card, Code, Key, Smartphone, Others | Special Features | Anti-Theft, Built-in Siren, Motion Detection, Night Vision, One-way Audio, Time Attendance, Others |
| Storage | Cloud, Memory Card | Material | Cold rolled steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |

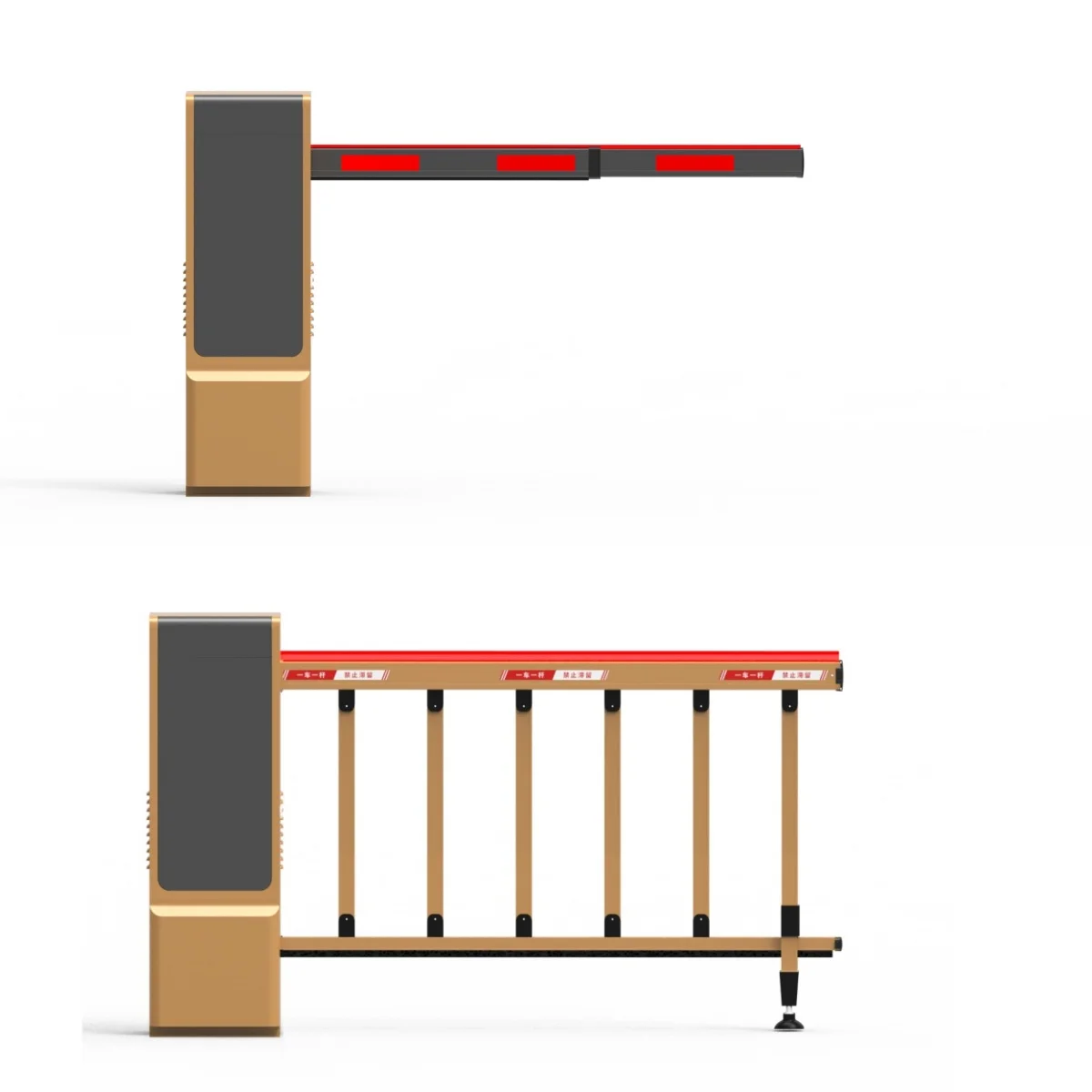

| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF (Mean Cycles Between Failure) | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR (Mean Time to Repair) | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Delivery
| Selling Units | Single item |
User-friendly interface featuring an integrated smart controller motherboard designed for enterprise-grade security framework and highly dependable vehicle access control operations across India.
The modular architectural structure ensures an ultra-intuitive installation process and highly efficient routine maintenance procedures for your heavy-duty automatic parking boom gate system.
Exceptionally stable performance driven by a high-efficiency DC brushless motor mechanism and advanced variable frequency technology, delivering silent, fluid, and stutter-free operation at every automated smart vehicle entrance lane.
Comprehensive integrated safety protocols including precise anti-crush loop vehicle sensors, digital auto-rebound impact logic, and an ergonomic mechanical manual override clutch lever for seamless operation during municipal power outages.
Engineered specifically for high-throughput traffic flow control, contactless long-range RFID card access terminals, pedestrian speed turnstile integration, and automated commercial logistics distribution hub fulfillment centers.

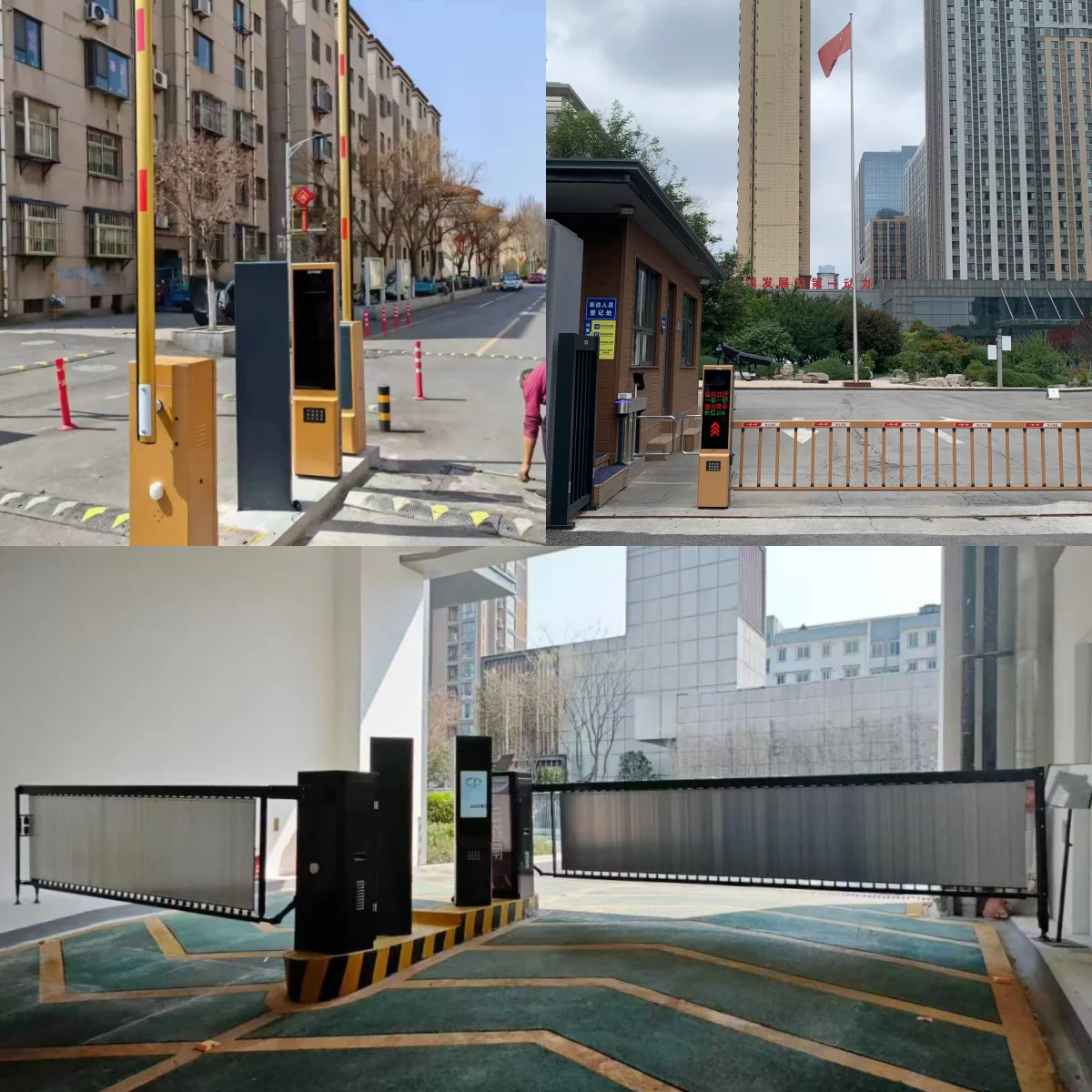

Deployment site application environments include: Premium Shopping Malls, Corporate Office Towers, Luxury Hotels & Resorts, Convention Exhibition Centres, Guarded Residential Housing Estates, Private Bungalows, High-rise Condominiums, Industrial Parks, Logistics Warehouses, Port Terminals, Construction Sites, Public Civic Infrastructure, International Airports, KTM Transit Railway Stations, General Hospitals, Government Administrative Complexes, University Campuses, Sports Stadiums, and Highway Toll Plazas.
Product Demonstration & Quality Testing Videos
Witness the heavy-duty operational efficiency and mechanical reliability of the Baroxon industrial automated lane barrier system below:
Product Structural Schematics
About Baroxon - Premier Traffic Barrier Gate Manufacturer
As an established global pioneer in perimeter security engineering, Baroxon provides end-to-end turnkey hardware and software solutions for vehicle access control, commercial security premises, and smart parking ecosystem infrastructure.
Strategic Market Position: Master-level engineering focus on heavy-duty straight arm barrier operators, articulated folding fence barriers, and cutting-edge ANPR/LPR license plate recognition software integrations.
Global Operational Footprint: Powering residential housing estates, commercial logistics yards, and high-speed municipal tollway networks across more than 200 countries worldwide.
End-to-End Technical Support: Providing specialized engineering site assessments, CAD layout design blueprints, comprehensive installer training modules, and dedicated remote technical consultation.
Continuous Innovation Portfolio: Holding over 100 proprietary utility patents in advanced DC brushless motor drive control boards and multi-tier electronic safety sensor arrays.
Customisation, Manufacturing & Project Deployment
Frequently Asked Questions (FAQ)
Q: What is the operational speed range of the vehicle barrier gate?
A: The standard opening and closing time ranges dynamically between 0.6s to 6s depending on your specific boom arm length configuration. Our high-speed specialized units are optimized for highway toll plazas and high-volume checkpoint systems.
Q: Is the system compatible with third-party LPR cameras or RFID access control?
A: Yes, absolutely. The Baroxon smart controller motherboard features open-architecture interfaces that support seamless integration with ANPR/LPR cameras, long-range UHF RFID card readers, facial recognition terminals, and standard ticketing machines.
Q: Are these boom barrier gates engineered to withstand harsh outdoor weather?
A: Definitely. All Baroxon barrier housings are constructed using heavy-gauge 2.0mm cold-rolled steel treated with marine-grade anti-corrosive powder coating, offering IP54 to IP66 weatherproof protection against extreme tropical heat, heavy downpours, and humidity.
Q: What safety protection systems come standard with the unit?
A: Our commercial systems prioritize safety by integrating automated electronic anti-crush detection, responsive digital auto-rebound logic upon physical obstruction, vehicle dual-channel loop detector terminals, and a secure manual mechanical override setup.
